HDMI Distribution Amplifier 1:4

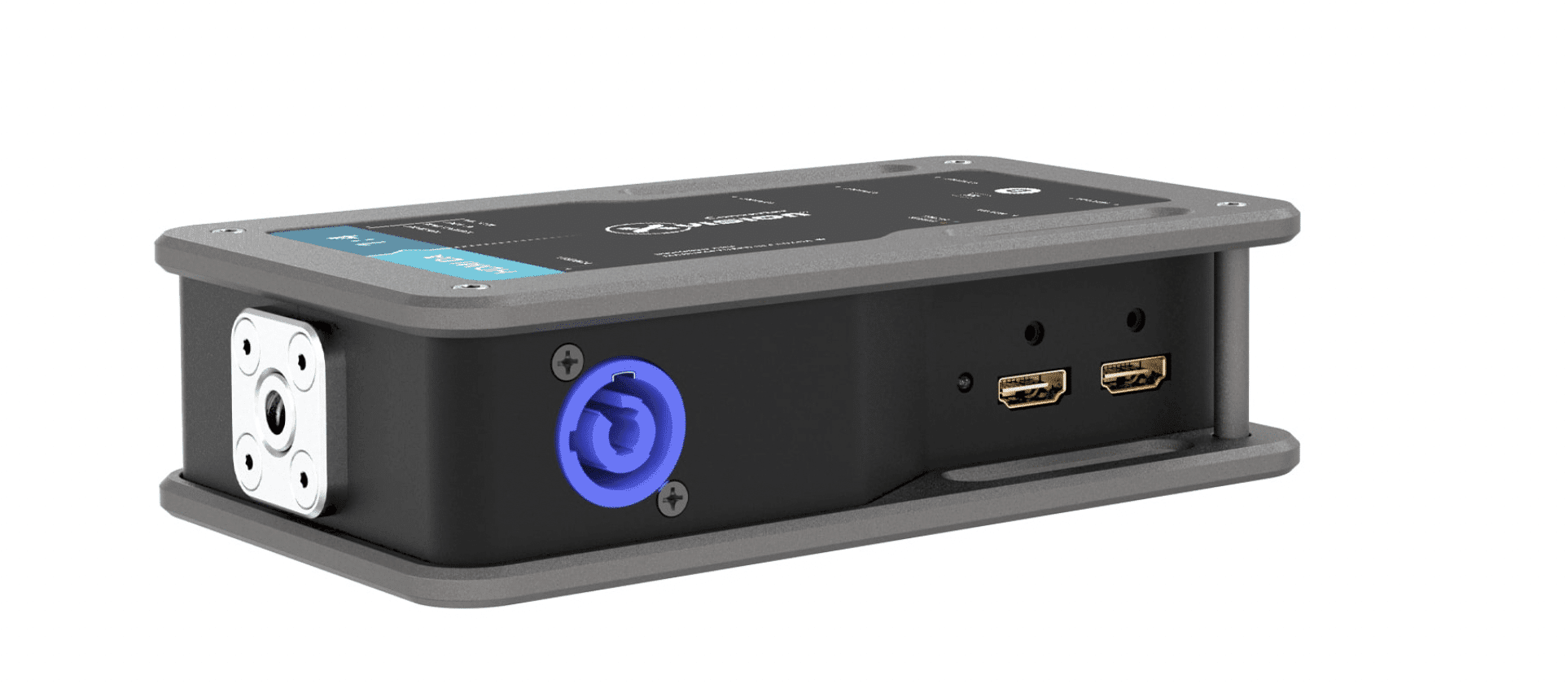

side view of hdmi da

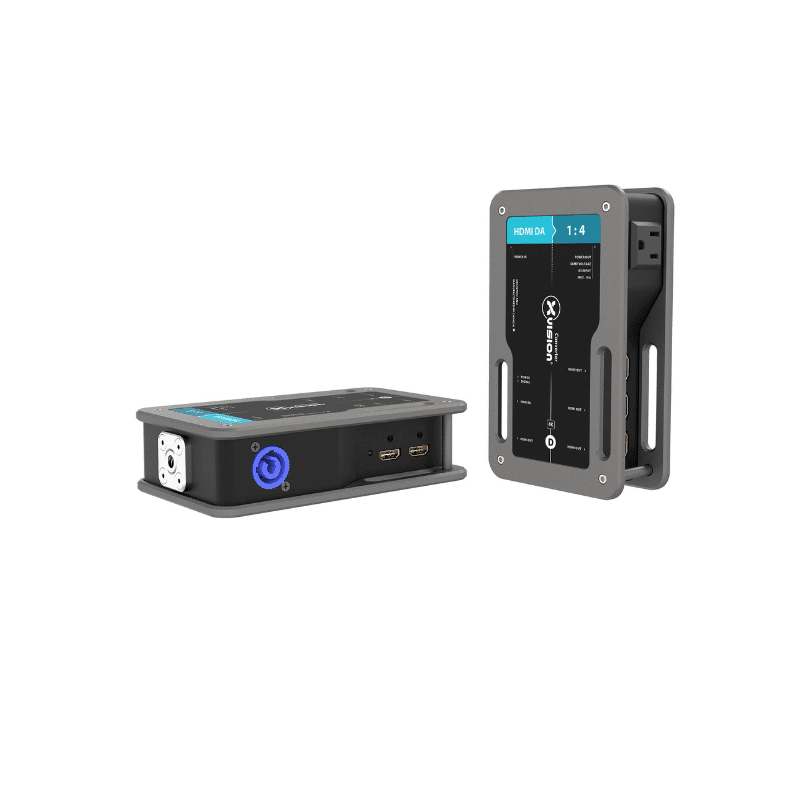

Theatrixx xVision Series HDMI Distribution Amplifier 1:4

Category:

Theatrixx XVVHDMIDA4 xVision Series HDMI Distribution Amplifier 1:4

The Theatrixx XVVHDMIDA4 xVision Series HDMI Distribution Amplifier is a professional-grade solution for seamless HDMI signal distribution. Designed for AV professionals, this rugged and reliable device ensures that a single HDMI source is duplicated to up to four outputs without any loss in quality. Whether you’re managing a live event, a broadcast studio, or a digital signage network, this distribution amplifier is the perfect tool for consistent, high-quality video delivery.

With support for 4K Ultra HD resolutions at 60Hz, the XVVHDMIDA4 maintains stunning image clarity, ensuring audiences experience vibrant colors and crisp detail on every connected display. Its advanced EDID management system eliminates potential signal handshake issues, providing hassle-free operation in a variety of setups.

Built with durability in mind, the amplifier features a rugged design, ideal for the demanding conditions of live productions and touring events. The locking power connector prevents accidental disconnections, ensuring reliable performance during critical operations. Additionally, its HDCP 2.2 compliance allows secure playback of protected content, making it compatible with modern media requirements.

The compact form factor of the XVVHDMIDA4 makes it versatile for installations in tight spaces or rack-mounted configurations. Its user-friendly interface ensures quick setup and operation, saving valuable time in fast-paced environments. The HDMI Distribution Amplifier 1:4 is plug-and-play!

Incorporating cutting-edge technology and robust construction, the Theatrixx XVVHDMIDA4 is the ultimate HDMI distribution amplifier for professionals who demand flawless video signal distribution in their projects. Whether for corporate presentations, digital signage, or entertainment productions, this amplifier delivers reliability and performance you can count on.

Key Features:

  • Distributes one HDMI source to four outputs
  • Supports 4K @ 60Hz and HDCP 2.2
  • Advanced EDID management
  • Rugged, road-ready design
  • Locking power connector for secure operation
  • Compact and versatile for easy installation

Elevate your AV setup with the Theatrixx XVVHDMIDA4. It’s the ideal solution for uncompromising signal quality in any professional environment.

Check out the manufacturer’s product listing here.

Please browse our rental inventory!



<ul>
<li>Connections
<ul>
<li>Video Input: 1 x HDMI 2.0 type A with locking system</li>
<li>Video Output: 4 x HDMI 2.0 type A with locking system (Individual downscaling per port)t</li>
<li>Supported Signals</li>
<li>HDR 4K/2K @ 60 fps (4:2:0 10 bits)</li>
<li>4K/2K @ 60 fps (4:4:4 8 bits)</li>
<li>HDCP Compliance: HDCP 2.2/1.4</li>
<li>Video Bandwidth: Single-link 600MHz (18 Gbps)</li>
<li>Embedded Audio Support: DTS-HD Master Audio, Dolby, TrueHD Dolby Digital, DTS, LPCM</li>
</ul>
</li>
<li>Physical
<ul>
<li>Height: 50 mm (1.97 in)</li>
<li>Depth: 180 mm (7.08 in)</li>
<li>Width: 107 mm (4.21 in)</li>
<li>Weight: 1 kg (2.2 lbs)</li>
<li>Alternate Form Factor: Also available as a Reversible Module</li>
</ul>
</li>
<li>Environmental
<ul>
<li>Relative Humidity: 0% to 90% non-condensing</li>
<li>Operating Temperature: 0-40° C</li>
</ul>
</li>
<li>Power Requirements
<ul>
<li>Power Supply
<ul>
<li>Built-in power supply</li>
<li>PowerCON input</li>
<li>Edison Nema 5-15 output (loop-thru)</li>
</ul>
</li>
<li>Power Consumption: 15W</li>
<li>Voltage Range</li>
<li>100-120V, 50-60Hz</li>
<li>(100-240V, 50-60Hz available with PowerCON True1)</li>
<li>Courtesy Outlet: Max 10A, same voltage as input</li>
</ul>
</li>
<li>In the Box
<ul>
<li>xVision Converter HDMI Distribution Amplifier 1:4</li>
<li>AC Mains to PowerCON cable (1.5m, specify plug type at ordering)</li>
</ul>
</li>
</ul>
